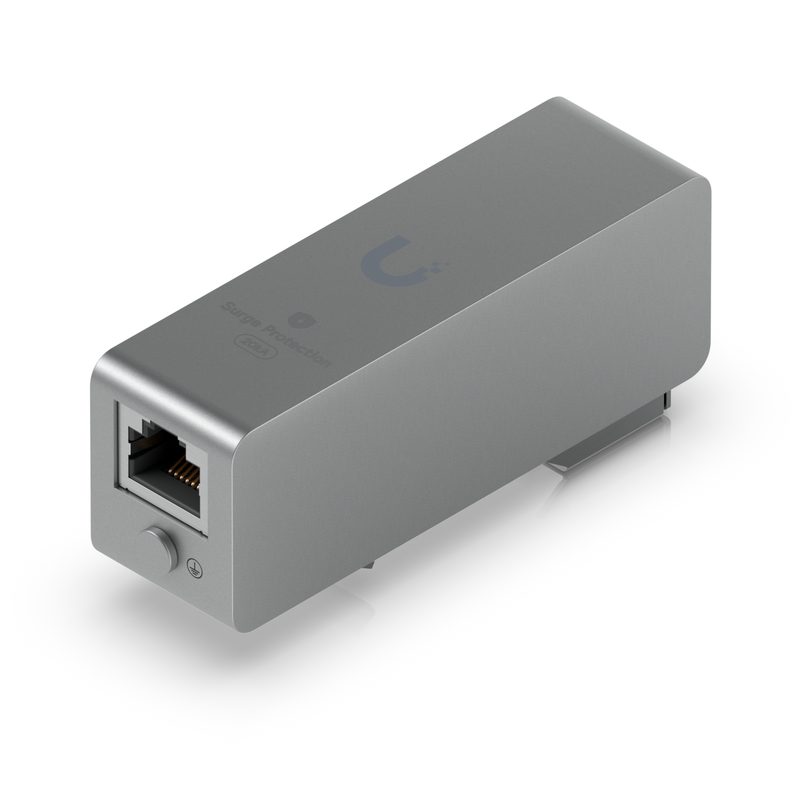

Ubiquiti Ethernet Surge Protector DIN
Ubiquiti · UACC-ETH-SP-DIN · EAN 0810177161844
sofort lieferbar
38,72 €inkl. MwSt., zzgl. Versand
Beschreibung
Bidirectional protection for up to 10 GbE, PoE+++, and 20kA surge discharge for indoor installation.
Technische Daten
- Höhe
- 4,5 cm
- Tiefe
- 9,3 cm
- Breite
- 4,5 cm
- Gewicht
- 0,140 kg
- Mechanical: Weight
- 2 kg (4.4 lb)
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Mechanical: Dimensions
- 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Discharge Current
- 20kA
- Hardware: ESD/EMP Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Data Line Protection
- Up to 10 Gbps
- Hardware: Networking Interface
- (48) RJ45 female connectors
- Mechanical: Enclosure Material
- SGCC steel
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensin
- Hardware: Ambient Operating Temperature
- -40° to +80° C (-40° to 176° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 600V @ 1kV/µs
