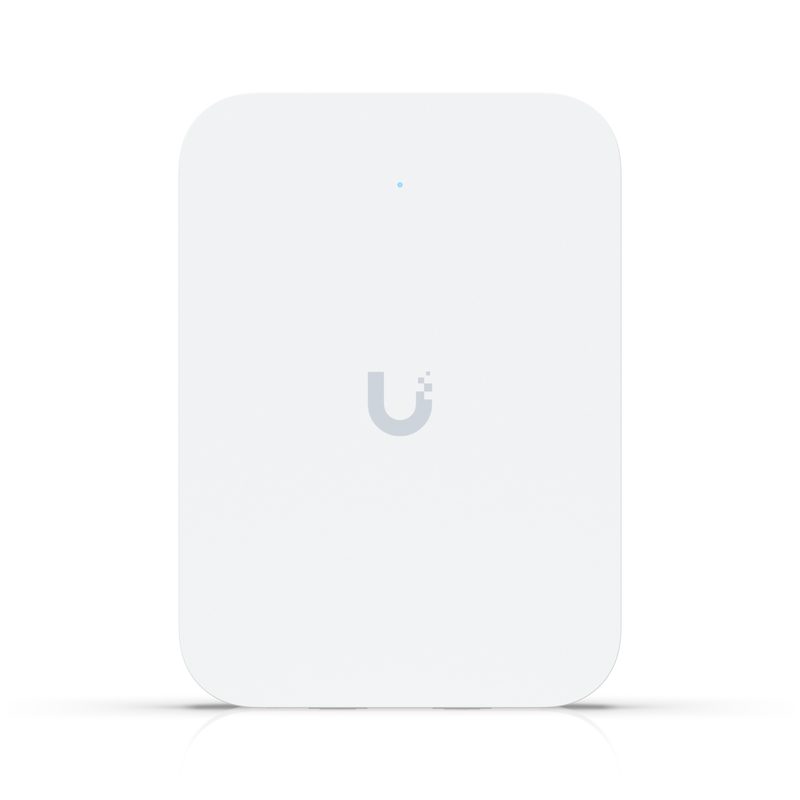

Ubiquiti Unifi U7 In-Wall - U7-IW - Wifi-7
Ubiquiti · U7-IW · EAN 0810084698754
sofort lieferbar
187,07 €inkl. MwSt., zzgl. Versand
Gut geeignet für
- Büro & Unternehmen
- Gaming & Streaming
- Homeoffice
Größere Stückzahl oder Projekt? Projektanfrage stellen — Antwort kommt vom Fachbetrieb, nicht vom Bot.
Beschreibung
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Ähnliche Artikel
Technische Daten
- Höhe
- 6,8 cm
- Tiefe
- 19,4 cm
- Breite
- 14,7 cm
- Uplink
- 2.5 GbE
- Weight
- 156 g (5.5 oz)
- Gewicht
- 0,544 kg
- Mounting
- Wall (Metal Wall Mount Included)
- Dimensions
- 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
- Efficiency
- >87%
- Power Method
- PoE PoE+ (Required for PoE output)
- Coverage Area
- 115 m² (1,250 ft²)
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 0.75A Max.
- Output Ripple
- 1% Max.
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- WiFi Standard
- WiFi 7
- Certifications
- CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
- Inrush Current
- <150A peak @ 230V AC
- Output Voltage
- 48V DC @ 0.65A
- 2-pair Powering
- Pins 4, 5 (+) and 7, 8 (-)
- Line Regulation
- ≤ 1%
- Load Regulation
- ≤ 3%
- Spatial Streams
- 4
- Hardware: System
- White/Blue
- Hardware: Weight
- 400 g (14.1 oz)
- Surge Protection
- Difference and common mode
- Max. Client Count
- 200+
- Shunt Capacitance
- <5 pF data
- Peak Pulse Current
- 36A (10/1000 μs) data
- Performance: 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Clamping Protection
- 11V Data, 60V power
- Switching Frequency
- 65 kHz Max.
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- Ethernet
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Software: Mobile App
- iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
- Software: UniFi Network
- Version 9.0.114 and later
- Hardware: Certifications
- CE, FCC, IC, SRRC, Anatel: 03909-25-08356
- Hardware: Mount Material
- Aluminum alloy
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Built-In Switch
- (1) PoE+ input and (1) PoE output
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Hardware: Enclosure Material
- Polycarbonate, aluminum alloy
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Networking Interface
- (3) 2.5 GbE RJ45 ports
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- Grid overview: Max. Client Count
- 200
- Hardware: Max. Power Consumption
- 13W (Excluding PoE output)
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 40° C (-22 to 104° F)
