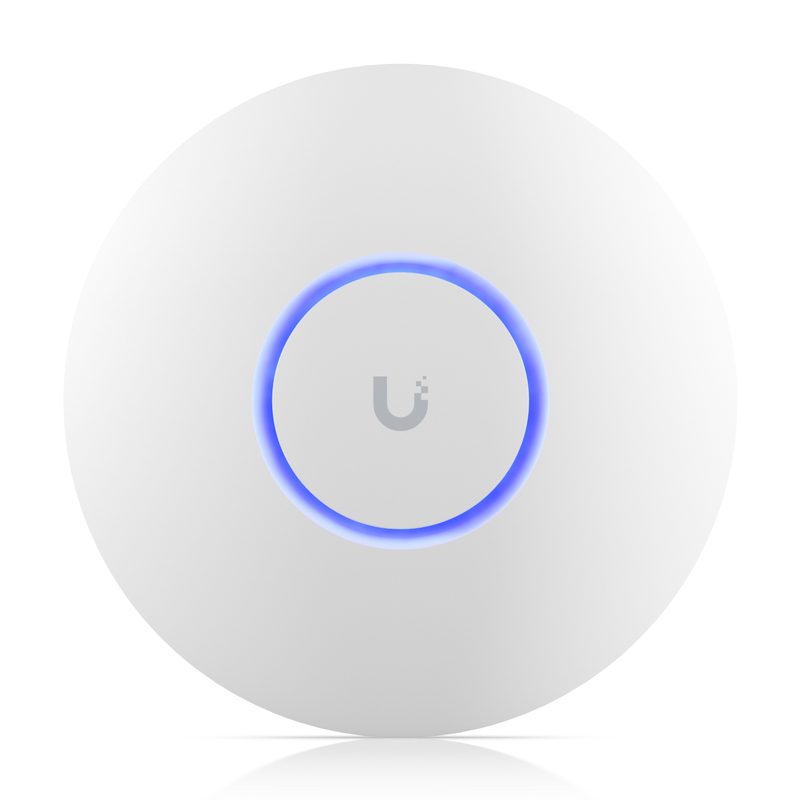

Ubiquiti UniFi AP U6+ - Wifi-6
Ubiquiti · U6+ · EAN 0810084691090
sofort lieferbar
124,51 €inkl. MwSt., zzgl. Versand
Beschreibung
Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.
Technische Daten
- Höhe
- 6,0 cm
- Tiefe
- 18,0 cm
- Breite
- 18,0 cm
- Uplink
- GbE
- Weight
- 100 g (3.5 oz)
- Gewicht
- 0,660 kg
- Mounting
- Ceiling, Wall (Mounts Included)
- Dimensions
- ⌀160 x 33 mm (⌀6.3 x 1.3")
- Efficiency
- 84.25+%
- Power Cable
- Included
- AC Connector
- IEC-320 C6
- Power Method
- PoE
- Coverage Area
- 140 m² (1,500 ft²)
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 500mA Max.
- Output Ripple
- 200mV pp
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- WiFi Standard
- WiFi 6
- Certifications
- CE, FCC, IC, UL, CCC
- Inrush Current
- <100A peak at 25°C
- Output Voltage
- 48V DC @ 0.32A
- 2-pair Powering
- Pins 4, 5 (+) and 7, 8 (-)
- Line Regulation
- ≤ 3%
- Load Regulation
- ≤ 5%
- Spatial Streams
- 4
- Available Colors
- Black Camo Concrete Fabric Marble Wood
- Hardware: System
- White/Blue
- Hardware: Weight
- Device: 338 g (11.9 oz) With mount: 413 g (14.6 oz)
- Surge Protection
- Difference and common mode
- Max. Client Count
- 300+
- Shunt Capacitance
- <5 pF data
- Enclosure Material
- Black/Camo/Concrete/Marble/Wood: Polycarbonate Fabric: Polycarbonate, acrylonitrile butadiene styrene, fabric
- Peak Pulse Current
- 36A (10/1000 μs) data
- Performance: 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Clamping Protection
- 11V Data, 60V Power
- Switching Frequency
- 65 kHz
- Grid overview: WiFi6
- WiFi 6
- Hardware: Management
- Ethernet
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Grid overview: Uplink
- GbE
- Software: UniFi Network
- Version 7.3.76 and later
- Hardware: Certifications
- CE, FCC, IC, SRRC, Anatel: 10539-23-08356
- Hardware: Mount Material
- ABS, SGCC steel
- Performance: Max. BSSIDs
- 8 per Radio
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
- Hardware: Enclosure Material
- Polycarbonate, aluminum
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Operating Frequency
- US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
- Hardware: Networking Interface
- (1) GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 9W
- Hardware: Supported Voltage Range
- 44–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 60° C (-22 to 140° F)
