Ubiquiti UICARE-UWB-XG-EU
Ubiquiti · UICARE-UWB-XG-EU-D
Lieferzeit auf Anfrage
327,61 €inkl. MwSt., zzgl. Versand
Beschreibung

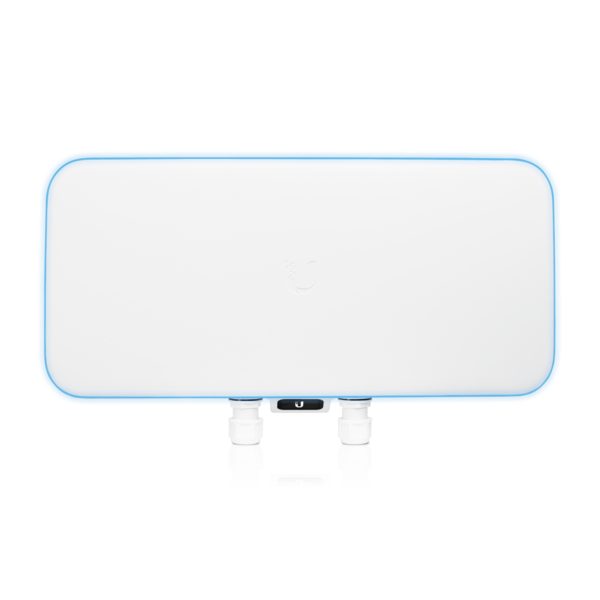

Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
Technische Daten
- Uplink
- 10 GbE
- Mounting
- Wall, Pole (Mounts Included), VESA (Optional)
- Dimensions
- 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7")
- Power Method
- PoE++
- Coverage Area
- 465 m² (5,000 ft²)
- WiFi Standard
- WiFi 5
- Spatial Streams
- 12
- Weatherproofing
- IP67
- Hardware: System
- R/G/B
- Hardware: Weight
- 3.2 kg (7.1 lb)
- Max. Client Count
- 1500+
- Hardware: Antennas
- (1) Integrated dual-mode antenna array
- Mechanical: Weight
- 80 g (2.8 oz)
- Performance: 5 GHz
- Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO)
- Grid overview: WiFi5
- WiFi 5
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Hardware: Management
- Ethernet Bluetooth
- Performance: 802.11n
- 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40)
- Grid overview: Uplink
- 10 GbE
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Software: UniFi Network
- Version 6.0.45 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 08960-24-08356
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Hardware: Enclosure Material
- Polycarbonate, aluminum alloy
- Hardware: Operating Frequency
- US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5670 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5670 MHz
- Hardware: Pole Mount Diameter
- 1~3" (25~76 mm)
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port
- Mechanical: Enclosure Material
- Polycarbonate
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Grid overview: Max. Client Count
- 1,500
- Hardware: Max. Power Consumption
- 31W
- Hardware: Supported Voltage Range
- 44–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -40 to 70° C (-40 to 158° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
