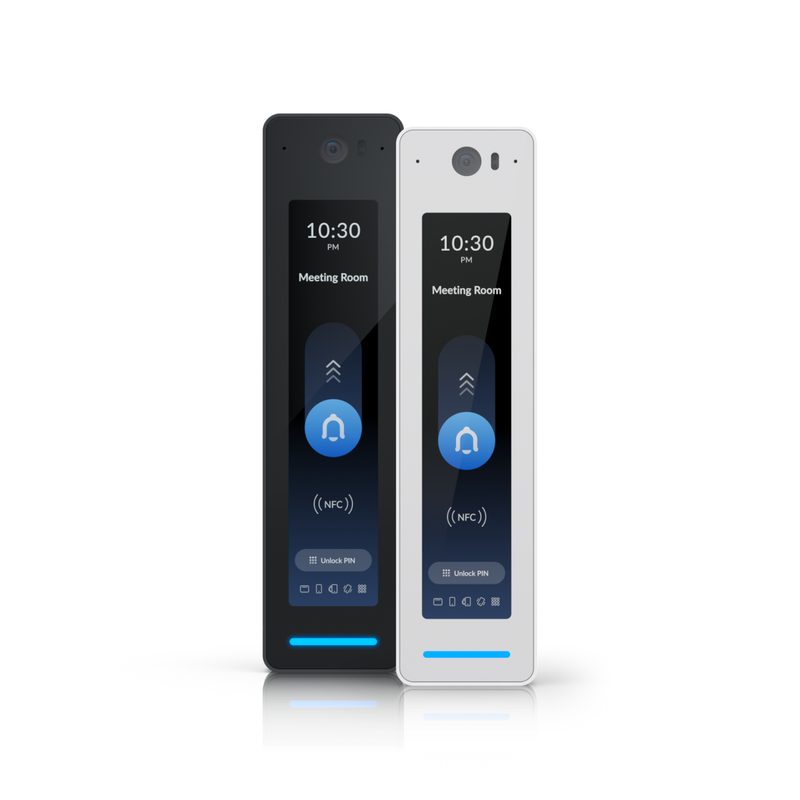

Ubiquiti Access G2 Reader Professional black

Beschreibung

Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.

Technische Daten

Audio

Two-way audio

Weight

180 g (6.3 oz)

Mounting

Wall, VESA mount

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Hardware: LEDs

R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Hardware: Size

120 mm (4.7") diagonal

Input Terminals

(2) Door exit request (1) Door position (1) Emergency

Supported Doors

1

Weatherproofing

IP55

Available Colors

Black, white

Hardware: Button

(1) Factory reset

Hardware: Buttons

(1) Factory reset

Hardware: Sensors

Proximity sensor

Mounting Material

Polycarbonate, sponge, rubber

Enclosure Material

Polycarbonate

Grid overview: NFC

NFC

Grid overview: PoE

4 PoE Ports

Maximum User Count

6,000

Mechanical: Format

ISO 7810 ID-1

Mechanical: Weight

136 g (4.8 oz)

Hardware: Luminance

480 nits (Typical)

Grid overview: Apple

Touch Pass

Grid overview: Sound

Two-Way Audio

Hardware: Resolution

2MP 1200 x 1600 (3:4)

Mechanical: Mounting

Wall, gang-box mount (Included) Angle mount, junction box (Optional)

Hardware: Connectivity

BLE 4.2 NFC

Hardware: Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Mechanical: Dimensions

85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")

Hardware: Digital Input

Request to exit, request to enter, remote release, door position sensor

Hardware: Field of View

H: 98.6°, V: 125.7°, D: 157.8°

Hardware: NFC Frequency

13.56 MHz

Hardware: PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)

UniFi Application Suite

Protect Access

Hardware: Certifications

CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

Mechanical: Pack Options

UA-Card-B-10/UA-Card-W-10: 10-Pack UA-Card: 20-Pack UA-Card-B-100/UA-Card-W-100: 100-pack

Hardware: Max. Frame Rate

30 FPS

Mechanical: NFC Frequency

13.56 MHz

Hardware: Dry Output Relay

Lock: 30V DC, 1A Aux: 30V DC, 1A

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Mechanical: Mount Material

Aluminum alloy

Mechanical: NFC Technology

MIFARE DESFire EV3 UniFi Access Proprietary Security Protocol

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Screen Technology

Capacitive touch

Grid overview: AUX Terminals

2 AUX Terminals

Hardware: ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Hardware: Screen Orientation

Portrait

Grid overview: Lock Terminals

2 Lock Terminals

Grid overview: Physical Unlock

Pin Unlock

Hardware: Networking Interface

(1) GbE RJ45 port

Hardware: Powered Output Relay

Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A

Mechanical: Enclosure Material

Polycarbonate, glass

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Grid overview: Additional Inputs

4 Additional Inputs

Hardware: Indoor and Outdoor Use

Yes

Hardware: Max. Power Consumption

6W

Software: Management Application

Access

Hardware: Supported Voltage Range

48V DC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Ambient Operating Temperature

Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

Hardware: Document number, and issue date and/or revision le

UA-G3-Pro-W/UA-G3-Pro-B, V01
