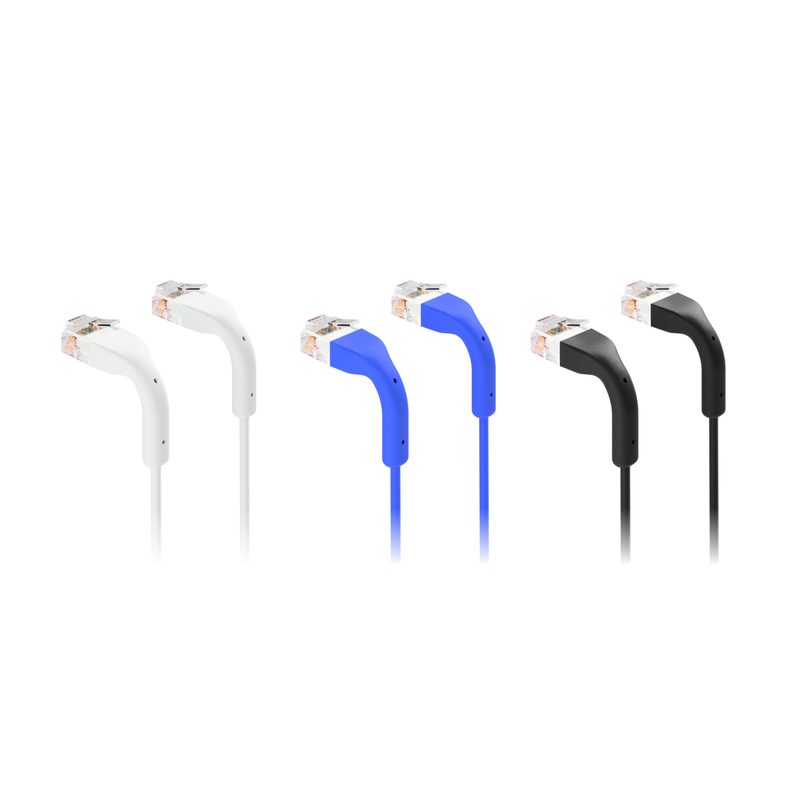

Ubiquiti UniFi Patchkabel Cat6a EL 2.0m weiß
Ubiquiti · UACC-Cable-Patch-EL-C6A-2M-W
sofort lieferbar
11,23 €inkl. MwSt., zzgl. Versand
Beschreibung
Ultra-thin patch cable with up to 10 GbE support and flexible, bendable boots for enhanced installation versatility.
Technische Daten
- Connector
- (2) Bendable booted RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Bend Radius
- 0.2–8 m (0.7–26.2 ft): Min. 21 mm (0.83") 12–15 m (39.4–49.2 ft): Min. 24 mm (0.94")
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit (0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m) 10-Pack ( 0.2, 0.4, 1, 2, 3 m) 24-Pack (0.2, 0.4, 1, 2 m) 50-Pack (0.2, 0.4 m)
- Bendable Boot
- Max. ±90° / ±45° (vertical/horizontal)
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Shielding Type
- UTP
- Jacket Diameter
- 0.2–8 m (0.7–26.2 ft): 2.5 mm (0.1") 12–15 m (39.4–49.2 ft): 2.9 mm (0.11")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Available Colors
- White, Blue, Black
- Available Lengths
- End-to-end: 0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m (0.7, 1.3, 3.3, 6.6, 9.8, 16.4, 26.2, 39.4, 49.2 ft)
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 0.2–8 m (0.7–26.2 ft): 34 AWG 12–15 m (39.4–49.2 ft): 32 AWG
- Supported Data Rate
- 10 GbE
- Operating Environment
- Indoor
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Ambient Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Ambient Operating Temperature
- -20 to 60°C (-4 to 140°F)
