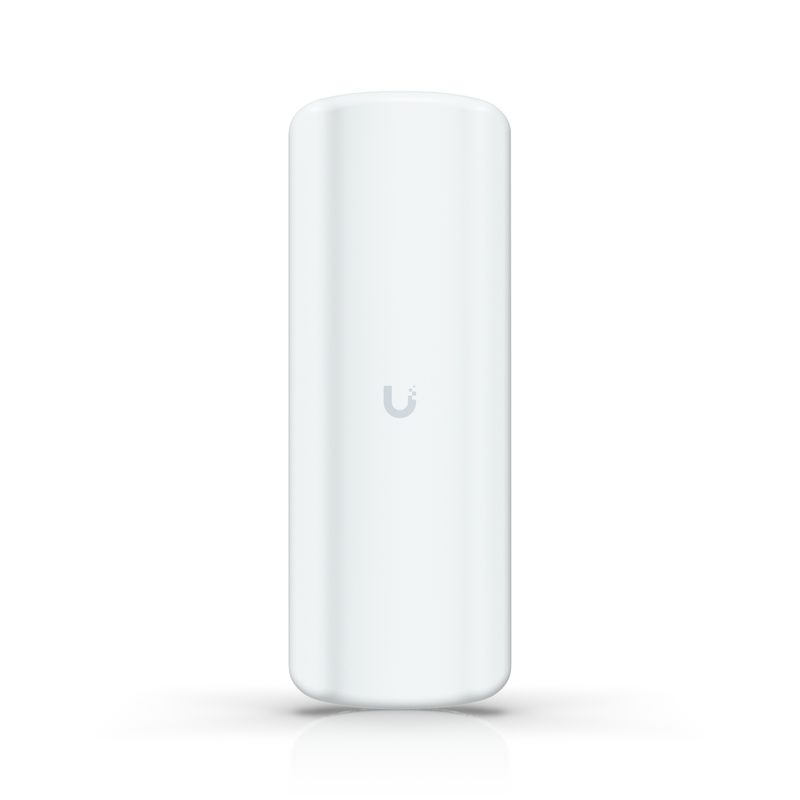

Ubiquiti UniFi Device Bridge Pro Sector
Ubiquiti · UDB-Pro-Sector
sofort lieferbar
261,13 €inkl. MwSt., zzgl. Versand
Beschreibung
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.
Technische Daten
- Dimensions
- 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”)
- Power Method
- PoE
- Coverage Area
- 5 km (3.1 mi)
- WiFi Standard
- WiFi 5
- Spatial Streams
- 2
- Weatherproofing
- IPX6
- Hardware: Button
- (1) Factory reset
- Hardware: System
- Power, Ethernet
- Hardware: Weight
- Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb)
- Hardware: Antennas
- Internal
- Mechanical: Weight
- 80 g (2.8 oz)
- Mounting Locations
- Pole
- Performance: 5 GHz
- 2 x 2
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Hardware: Management
- Ethernet WiFi
- Performance: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: Wind Loading
- 128.2N at 200 km/h
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Hardware: Certifications
- CE, FCC, IC, Anatel: 05978-25-08356
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- UV-stabilized polycarbonate, stainless steel
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Channel Bandwidth
- 20/40 MHz
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Hardware: Enclosure Material
- UV-stabilized polycarbonate
- Hardware: Operating Frequency
- US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
- Hardware: Pole Mount Diameter
- 0.9—2.4" (24—60 mm)
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (1) GbE RJ45 port
- Mechanical: Enclosure Material
- Polycarbonate
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
- Performance: Wireless Security
- WPA2 AES
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- 6W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Performance: Max. Conducted TX Power
- 25 dBm (Combined)
- Hardware: Ambient Operating Temperature
- -40 to 60° C (-40 to 140° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
