Ubiquiti OM4 Duplex LC UPC Fiber Patch Cable 15M
Ubiquiti · UACC-OFC-M2-LULU-15M · EAN 0810084695029
sofort lieferbar
27,37 €inkl. MwSt., zzgl. Versand
Beschreibung

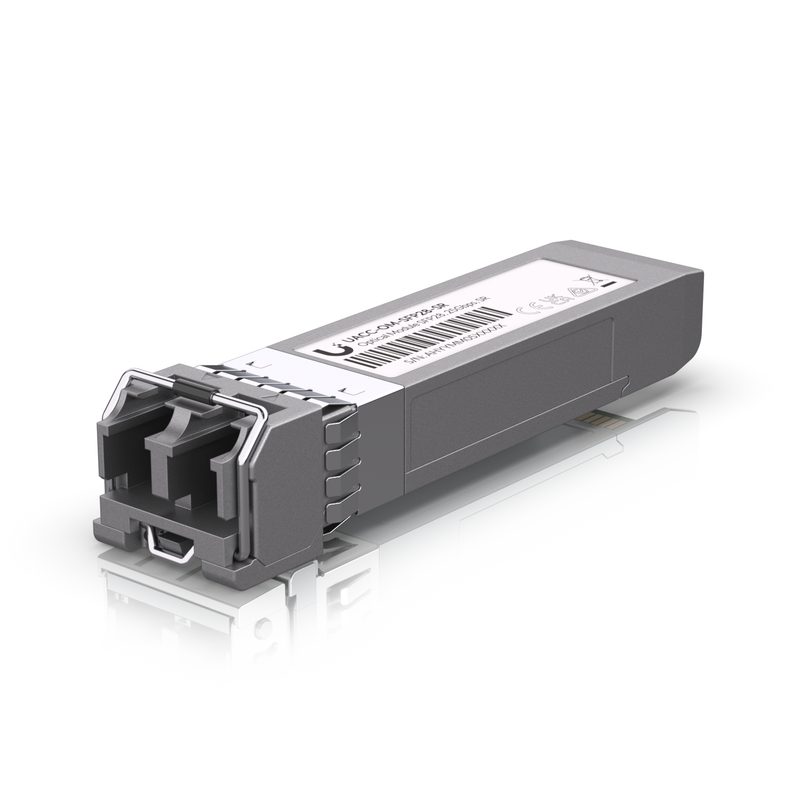

SFP28 transceiver that supports 25G connections up to 100 m using multi-mode fiber with a duplex LC UPC connector.
Technische Daten
- Höhe
- 2,9 cm
- Tiefe
- 18,5 cm
- Breite
- 18,2 cm
- Gewicht
- 0,171 kg
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- Connector
- Duplex LC UPC
- Durability
- ≤ 0.2 dB (1,000 times mating)
- Fiber Mode
- OM4
- Wavelength
- 850 nm
- Form Factor
- SFP28
- Return Loss
- ≥ 20 dB
- Jacket Color
- Rose
- Pack Options
- Single Unit
- RX Wavelength
- 850 nm
- Repeatability
- ≤ 0.1 dB
- TX Wavelength
- 850 nm
- Insertion Loss
- ≤ 0.6 dB
- Jacket Diameter
- 3 mm (0.12")
- Jacket Material
- Low smoke zero halogen (LSZH)
- Supported Media
- Multi-Mode Fiber
- Available Lengths
- 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft)
- Supported Data Rate
- 1 / 10 / 25 Gbps
- Operating Environment
- Indoor
- Max. Power Consumption
- 0.8 W
- Supported Cable Distance
- OM4 - 100 m (328 ft) OM3 - 70 m (229 ft)
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
