Beschreibung

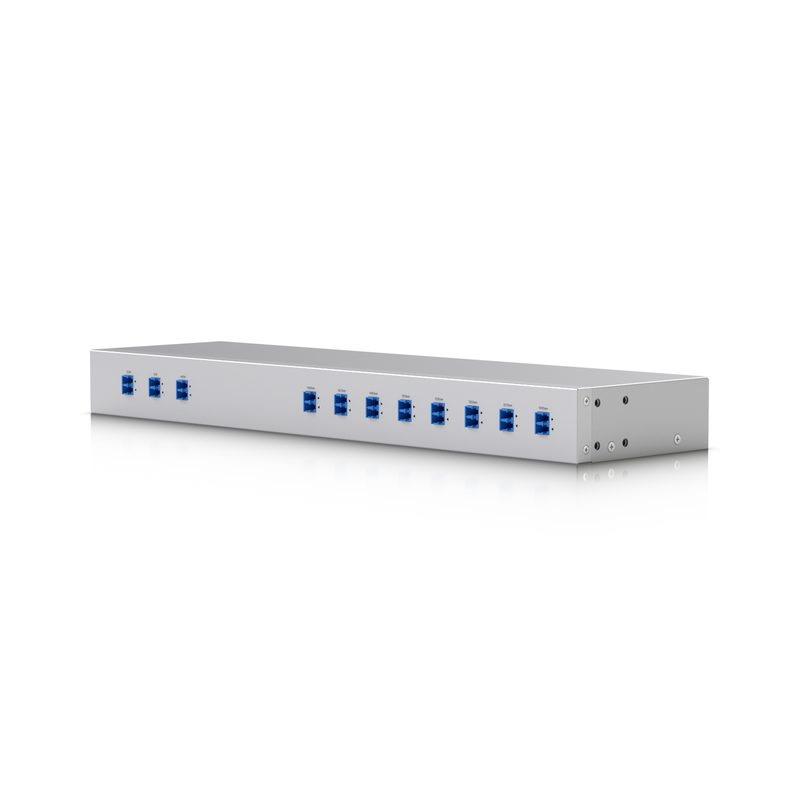

Rack-mountable 8-channel CWDM mux demux designed to increase capacity of existing fiber infrastructure.
Technische Daten
- Type
- SMF-28e
- Length
- ≥0.5 to 1 m
- Weight
- 1.4 kg (3.2 lb)
- Connector
- (1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450 to 1590 nm (LC/UPC)
- Isolation
- Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB
- Dimensions
- 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
- Return Loss
- 50 dB (Min.)
- Pack Options
- Single Unit
- Channel Count
- 8 CH Mux/Demux
- Insertion Loss
- <2.5 dB (Max.)
- Supported Media
- Fiber
- Min. Directivity
- 55 dB
- Enclosure Material
- SGCC steel
- Max. Power Handling
- 500 mW
- Max. Passband Ripple
- 0.3 dB
- Operating Wavelength
- UACC-OM-SFP10-1270~1330: 1260 to 1620 nm UACC-OM-SFP10-1450~1590: 1340 to 1620 nm
- Min. Channel Passband
- ±6.5 nm
- Max. Power Consumption
- 1.2W
- Supported Cable Distance
- 20 km (65,617 ft)
- Channel Center Wavelength
- 1450/1470/1490/1510/1530/1550/1570/1590 nm
- Ambient Operating Humidity
- 0 to 85% noncondensing
- Pigtail and Connector Type
- COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC
- Ambient Storage Temperature
- -40 to 90° C (-40 to 194° F)
- Ambient Operating Temperature
- -30 to 75° C (-22 to 167° F)
- Max. Polarization Dependent Loss
- 0.1 dB
- Max. Polarization Mode Dispersion
- 0.1 ps
