Ubiquiti Access G2 Starter Kit Professional
Ubiquiti · UA-G2-SK-Pro · EAN 0810084691830
sofort lieferbar
714,00 €inkl. MwSt., zzgl. Versand
Beschreibung
Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.
Technische Daten
- DPS
- Embedded
- Höhe
- 8,3 cm
- Tiefe
- 35,7 cm
- Breite
- 21,1 cm
- Weight
- UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg
- Wiring
- (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow)
- Gewicht
- 1,906 kg
- Mounting
- UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and
- Lock Type
- Fail safe
- 1 GbE RJ45
- 9 (4 PoE+; 4 PoE++) (1G/100M/10M)
- Dimensions
- 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- In the Box

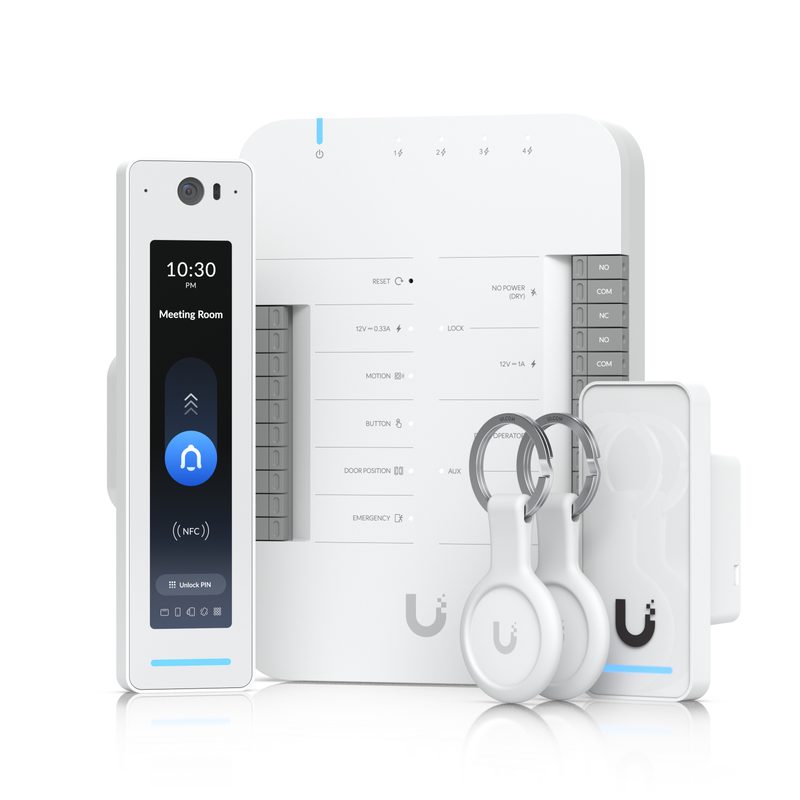

- (1) Door Hub (1) G2 Reader Pro (1) G2 Reader (2) Pocket Keyfobs
- Redundancy
- Battery Power Backup
- Touch Pass
- 10 free 1-year Touch Passes included <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a>
- Form Factor
- Rack mount (1U)
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Current Power
- 500mA ±10%
- Holding Force
- UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
- LED Indicator
- Green: unlocked Red: locked
- Certifications
- FCC, IC, CE
- Door Hub: LEDs
- B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Hardware: LEDs
- R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Hardware: PoE+
- 4
- G2 Reader: LEDs
- R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- G3 Reader: LEDs
- R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Hardware: PoE++
- 4
- Max. PoE Output
- Up to PoE++
- Weatherproofing
- IP55
- Door Hub: Button
- (1) Factory reset
- Door Hub: Weight
- 363 g (12.8 oz)
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb)
- G2 Reader: Button
- (1) Factory reset
- G2 Reader: Weight
- 82 g (2.9 oz)
- G3 Reader: Button
- (1) Factory reset
- G3 Reader: Weight
- 82 g (2.9 oz)
- Hardware: Sensors
- Proximity sensor
- Support Door Type
- UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal)
- Door Hub: Mounting
- DIN-rail (Included)
- Enclosure Material
- Device/brackets: aluminum Armature: steel
- G2 Reader: Sensors
- Proximity sensor
- G2 Reader: Speaker
- (1) Yes, 0.7W
- G3 Reader: Sensors
- Proximity sensor
- G3 Reader: Speaker
- (1) Yes, 0.7W
- Grid overview: NFC
- NFC
- Mechanical: Weight
- 82 g (2.9 oz)
- G2 Reader Pro: LEDs
- R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- G2 Reader Pro: Size
- 120 mm (4.7") diagonal
- G2 Reader: Mounting
- In-wall, gang box (Included) Junction box (Optional)
- G3 Reader Pro: LEDs
- R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- G3 Reader Pro: Size
- 120 mm (4.7") diagonal
- G3 Reader: Mounting
- In-wall, gang box (Included) Junction box (Optional)
- Door Hub: Dimensions
- 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Grid overview: Apple
- Touch Pass
- Hardware: Management
- Ethernet AR
- Mechanical: Mounting
- In-wall, gang box (Included) Junction box (Optional)
- G2 Reader Pro: Button
- (1) Factory reset
- G2 Reader Pro: Weight
- 136 g (4.8 oz)
- G2 Reader: Dimensions
- 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- G3 Reader Pro: Button
- (1) Factory reset
- G3 Reader Pro: Weight
- 136 g (4.8 oz)
- G3 Reader: Dimensions
- 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Hardware: LCM Display
- 1.3" touchscreen
- Pocket Keyfob: Weight
- 16 g (0.56 oz)
- Support Voltage Range
- 12V DC ±10%
- Door Hub: Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Door Hub: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- G2 Reader Pro: Sensors
- Proximity sensor
- G2 Reader Pro: Speaker
- (1) Yes, 1.5W
- G3 Reader Pro: Sensors
- Proximity sensor
- G3 Reader Pro: Speaker
- (1) Yes, 1.5W
- Hardware: Connectivity
- BLE 4.1 NFC
- Hardware: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Hardware: Power Supply
- AC/DC, internal, 240W
- Total PoE Availability
- 120W
- Door Hub: Digital Input
- Request to exit, request to enter, remote release, door position sensor
- Door Hub: PoE Interface
- (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
- G2 Reader Pro: Mounting
- Wall, gang-box mount (Included) Angle mount, junction box (Optional)
- G2 Reader: Connectivity
- BLE 4.1 NFC
- G2 Reader: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- G2 Reader: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- G3 Reader Pro: Mounting
- Wall, gang-box mount (Included) Angle mount, junction box (Optional)
- G3 Reader: Connectivity
- BLE 4.1 NFC
- G3 Reader: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- G3 Reader: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Hardware: NFC Frequency
- 13.56 MHz
- Software: UniFi Network
- Version 6.2.26 and later
- UniFi Application Suite
- Access
- Door Hub: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Door Hub: Mount Material
- Polycarbonate
- G2 Reader Pro: Luminance
- 480 nits (Typical)
- G2 Reader: NFC Frequency
- 13.56 MHz
- G3 Reader Pro: Luminance
- 480 nits (Typical)
- G3 Reader: NFC Frequency
- 13.56 MHz
- Hardware: Certifications
- CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
- Hardware: ESD Protection
- Air/contact: ± 24kV
- Hardware: NFC Read Range
- < 30 mm (1.18'')
- Hardware: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
- Door Hub: Input Terminals
- (2) Door exit request (1) Door position (1) Emergency
- Door Hub: Supported Doors
- 1
- G2 Reader Pro: Dimensions
- 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- G2 Reader Pro: Resolution
- 2MP 1200 x 1600 (3:4)
- G2 Reader: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- G2 Reader: Mount Material
- Aluminum alloy
- G2 Reader: NFC Read Range
- < 30 mm (1.18'')
- G2 Reader: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
- G3 Reader Pro: Dimensions
- 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- G3 Reader Pro: Resolution
- 2MP 1200 x 1600 (3:4)
- G3 Reader: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- G3 Reader: Mount Material
- Aluminum alloy
- G3 Reader: NFC Read Range
- < 30 mm (1.18'')
- G3 Reader: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
- Pocket Keyfob: Dimensions
- 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
- Ambient Operating Humidity
- 5 to 90% noncondensing
- Door Hub: Dry Output Relay
- Lock: 30V DC, 1A Aux: 30V DC, 1A
- Door Hub: Other locks (1A)
- 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
- Door Hub: UL 294 Statement
- Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725
- G2 Reader: Weatherproofing
- IP55
- G3 Reader: Weatherproofing
- IP55
- Hardware: Heat Dissipation
- 170.6 BTU/hr (Excluding PoE Output)
- Hardware: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- Mechanical: Mount Material
- Aluminum alloy
- Ambient Storage Temperature
- -20 to 70° C (-4 to 158° F)
- G2 Reader Pro: Connectivity
- BLE 4.2 NFC
- G2 Reader Pro: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- G2 Reader Pro: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- G2 Reader: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- G3 Reader Pro: Connectivity
- BLE 4.2 NFC
- G3 Reader Pro: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- G3 Reader Pro: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- G3 Reader: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- Grid overview: Weatherproof
- Outdoor Exposed
- Door Hub: Enclosure Material
- Polycarbonate
- Door Hub: Maximum User Count
- 6,000
- G2 Reader Pro: Field of View
- H: 98.6°, V: 125.7°, D: 157.8°
- G2 Reader Pro: NFC Frequency
- 13.56 MHz
- G3 Reader Pro: Field of View
- H: 98.6°, V: 125.7°, D: 157.8°
- G3 Reader Pro: NFC Frequency
- 13.56 MHz
- Hardware: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input DC input (Backup)
- Performance: Forwarding Rate
- 13 Mpps
- Performance: Supported VLANs
- 1,000
- Pocket Keyfob: Certification
- CE
- Pocket Keyfob: NFC Frequency
- 13.56 MHz
- Ambient Operating Temperature
- -10 to 60° C (14 to 140° F)
- G2 Reader Pro: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- G2 Reader Pro: Mount Material
- Aluminum alloy
- G2 Reader Pro: NFC Read Range
- < 30 mm (1.18'')
- G2 Reader Pro: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
- G2 Reader: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- G2 Reader: Enclosure Material
- Polycarbonate, glass
- G3 Reader Pro: Certifications
- CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
- G3 Reader Pro: Mount Material
- Aluminum alloy
- G3 Reader Pro: NFC Read Range
- < 30 mm (1.18'')
- G3 Reader Pro: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
- G3 Reader: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- G3 Reader: Enclosure Material
- Polycarbonate, glass
- Pocket Keyfob: NFC Technology
- ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
- Door Hub: Networking Interface
- (5) 10/100/1000 Base-T
- Door Hub: Powered Output Relay
- Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
- Door Hub: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G2 Reader Pro: Max. Frame Rate
- 30 FPS
- G2 Reader Pro: Weatherproofing
- IP55
- G3 Reader Pro: Max. Frame Rate
- 30 FPS
- G3 Reader Pro: Weatherproofing
- IP55
- Grid overview: Physical Unlock
- Handwave Unlock
- Hardware: Networking Interface
- (1) 10/100 MbE RJ45 port
- Hardware: Supported Rack Depth
- 482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
- Mechanical: Enclosure Material
- Polycarbonate, glass
- Pocket Keyfob: Weatherproofing
- IP54
- Software: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G2 Reader Pro: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- G2 Reader: Networking Interface
- (1) 10/100 MbE RJ45 port
- G2 Reader: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G3 Reader Pro: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- G3 Reader: Networking Interface
- (1) 10/100 MbE RJ45 port
- G3 Reader: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- Performance: Packet Buffer Size
- 0.5 MB
- Performance: Switching Capacity
- 18 Gbps
- Door Hub: Management Application
- UniFi Access
- Door Hub: Max. Power Consumption
- 30W (Without PoE output) 50W (With PoE output)
- G2 Reader Pro: Screen Technology
- Capacitive touch
- G3 Reader Pro: Screen Technology
- Capacitive touch
- Hardware: Indoor and Outdoor Use
- Yes
- Hardware: Max. Power Consumption
- 5W
- Software: Management Application
- Access
- G2 Reader Pro: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- G2 Reader Pro: Enclosure Material
- Polycarbonate, glass
- G2 Reader Pro: Screen Orientation
- Portrait
- G2 Reader: Management Application
- UniFi Access
- G2 Reader: Max. Power Consumption
- 5W
- G3 Reader Pro: ESD/EMP Protection
- Air: ±15kV, contact: ±8kV
- G3 Reader Pro: Enclosure Material
- Polycarbonate, glass
- G3 Reader Pro: Screen Orientation
- Portrait
- G3 Reader: Management Application
- UniFi Access
- G3 Reader: Max. Power Consumption
- 5W
- Hardware: Supported Voltage Range
- 48V DC
- Pocket Keyfob: Enclosure Material
- Polycarbonate, stainless steel, silicone rubber
- Door Hub: CAN/ULC-60839-11-1 Grade
- Grade assignment: 1
- Door Hub: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Door Hub: UA-Lock-Electric (400mA)
- 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
- G2 Reader: Supported Voltage Range
- 48V DC
- G3 Reader: Supported Voltage Range
- 48V DC
- Hardware: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- Hardware: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- G2 Reader Pro: Networking Interface
- (1) GbE RJ45 port
- G2 Reader Pro: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G2 Reader: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- G2 Reader: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- G3 Reader Pro: Networking Interface
- (1) GbE RJ45 port
- G3 Reader Pro: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G3 Reader: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- G3 Reader: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Performance: MAC Address Table Size
- 8,000
- Door Hub: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Humidity
- 5 to 90% noncondensing
- G2 Reader Pro: Management Application
- UniFi Access
- G2 Reader Pro: Max. Power Consumption
- 6W
- G2 Reader: Ambient Operating Humidity
- 5 to 90% noncondensing
- G3 Reader Pro: Management Application
- UniFi Access
- G3 Reader Pro: Max. Power Consumption
- 6W
- G3 Reader: Ambient Operating Humidity
- 5 to 90% noncondensing
- G2 Reader Pro: Supported Voltage Range
- 48V DC
- G3 Reader Pro: Supported Voltage Range
- 48V DC
- Door Hub: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- G2 Reader Pro: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- G2 Reader Pro: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- G3 Reader Pro: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- G3 Reader Pro: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Hardware: Ambient Operating Temperature
- -30 to 45° C (-22 to 113° F)
- Door Hub: UA-Lock-Magnetic-270kg (800mA)
- 24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
- Door Hub: UA-Lock-Magnetic-540kg (500mA)
- 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
- G2 Reader: Ambient Operating Temperature
- -30 to 45° C (-22 to 113° F)
- G3 Reader: Ambient Operating Temperature
- -30 to 45° C (-22 to 113° F)
- G2 Reader Pro: Ambient Operating Humidity
- 5 to 90% noncondensing
- G3 Reader Pro: Ambient Operating Humidity
- 5 to 90% noncondensing
- Pocket Keyfob: Ambient Operating Humidity
- 10 to 90% noncondensing
- Performance: Total Non-Blocking Throughput
- 9 Gbps
- G2 Reader Pro: Ambient Operating Temperature
- Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
- G3 Reader Pro: Ambient Operating Temperature
- Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
- Pocket Keyfob: Ambient Operating Temperature
- -10 to 45° C (14 to 113° F)
- Door Hub: Document number, and issue date and/or revision le
- UA-Hub-Door002, V01
- G2 Reader Pro: Document number, and issue date and/or revisi
- UA-G2-Pro/UA-G2-Pro-Black, V02
- G2 Reader: Document number, and issue date and/or revision l
- UA-G2/UA-G2-Black, V02
- G3 Reader Pro: Document number, and issue date and/or revisi
- UA-G3-Pro-W/UA-G3-Pro-B, V01
- G3 Reader: Document number, and issue date and/or revision l
- UA-G3, V01
- Hardware: Document number, and issue date and/or revision le
- UA-G2/UA-G2-Black, V02
