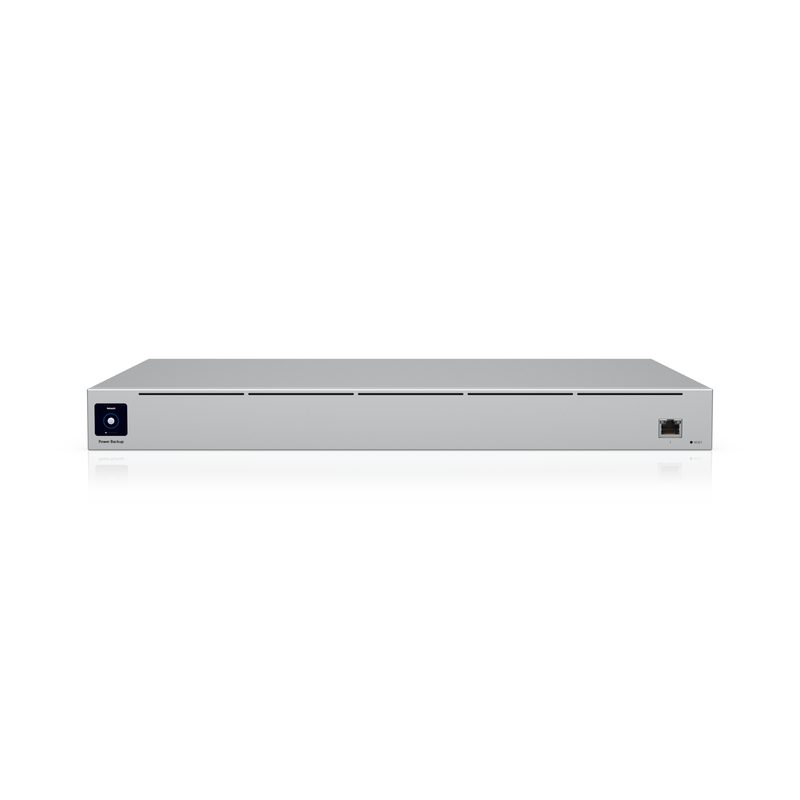

Ubiquiti UniFi Redundant Power System
Ubiquiti · USP-RPS · EAN 0817882029186
sofort lieferbar
510,94 €inkl. MwSt., zzgl. Versand
Beschreibung
950W redundant power supply for rack-mounted UniFi devices.
Technische Daten
- Höhe
- 13,5 cm
- Tiefe
- 53,5 cm
- Breite
- 45,5 cm
- Length
- 1.5 m (4.9 ft)
- Gewicht
- 6,849 kg
- Insulation
- Thickness: 0.35 mm (0.014") Diameter: 2 mm (0.08") Material: PVC
- Jacket Material
- PVC
- Hardware: System
- Status
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.3" touchscreen
- Hardware: USP RPS
- Activity
- Mechanical: Weight
- Without mount brackets : 5.5 kg (12.1 lb) With mount brackets: 5.6 kg (12.3 lb)
- Conductor Wire Gauge
- (18) 16 AWG (6) 24 AWG
- Hardware: Management
- Ethernet
- Jacket Outer Diameter
- 9.5 x 23 mm (0.4 x 0.9")
- Hardware: Power Method
- (1) Universal AC input, 100–240V AC
- Hardware: Power Output
- (6) RPS DC ports
- Hardware: Power Supply
- 54V DC output: AC/DC, internal, 645W 12V DC output: AC/DC, internal, 350W
- Mechanical: Dimensions
- 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7")
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Max. Power Output
- 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W)
- Hardware: ESD/EMP Protection
- Air: ± 16kV, contact: ± 12kV
- Hardware: Networking Interface
- (1) GbE RJ45 port
- Mechanical: Enclosure Material
- SGCC steel
- Hardware: Max. Power Consumption
- 995W
- Hardware: Supported Voltage Range
- 100–240V AC
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 45° C (23 to 113° F)
- Hardware: Max. Output Power per RPS Port
- 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W)
